ASME SECTION IX

ASME Section IX Welder Performance Qualification Testing

Mail-in ASME Section IX welder qualification for pressure vessel fabricators, piping contractors, and boiler shops. Your welder runs the coupon at your facility under a qualified WPS. Ship it to Atlanta. We handle CWI inspection, accredited bend testing, and official WPQ documentation.

✓ We Test Your Coupons  •  ✗ We Are Not a Welding School  •  ✓ Official ASME WPQ Records Issued

✆  (404) 860-1288 Get a Quote How It Works
IX
ASME Code
Section IX compliant
All
Positions
Plate and pipe
QW
-484 WPQ Form
Official documentation
AWS
CWI Inspected
Every coupon
✓  ASME B&PV Code Section IX ✓  Pressure Vessel Fabrication ✓  Process Piping B31.3 ✓  Boiler Construction ✓  Nationwide Mail-In Service

What Is ASME Section IX Welder Qualification?

ASME Section IX — formally the Qualification Standard for Welding, Brazing, and Fusing Procedures; Welders; Brazers; and Welding, Brazing, and Fusing Operators — is the governing code for welder qualification in pressure equipment and piping fabrication. When a project, inspection authority, or construction code (Section VIII pressure vessels, B31.3 process piping, Section I power boilers) requires ASME-qualified welders, Section IX is the qualification standard they are referring to.

Section IX welder qualification is performance-based. The welder demonstrates skill by producing a test coupon under a qualified Welding Procedure Specification. An examiner evaluates the coupon through visual inspection and mechanical testing — typically guided bend specimens. A passing result produces a Welder Performance Qualification record (WPQ) documented on Form QW-484, which the employer maintains for the duration of the welder's employment.

ASME Section IX vs. AWS D1.1 — Two Different Codes, Two Different Applications: D1.1 governs structural steel welding — buildings, bridges, structural fabrication. Section IX governs pressure-containing equipment — vessels, boilers, process piping. A welder qualified to D1.1 is not qualified to ASME Section IX and vice versa. If your project is stamped under an ASME construction code, you need Section IX qualification. If it's a structural steel project, you need D1.1. WeldCertTest handles both.

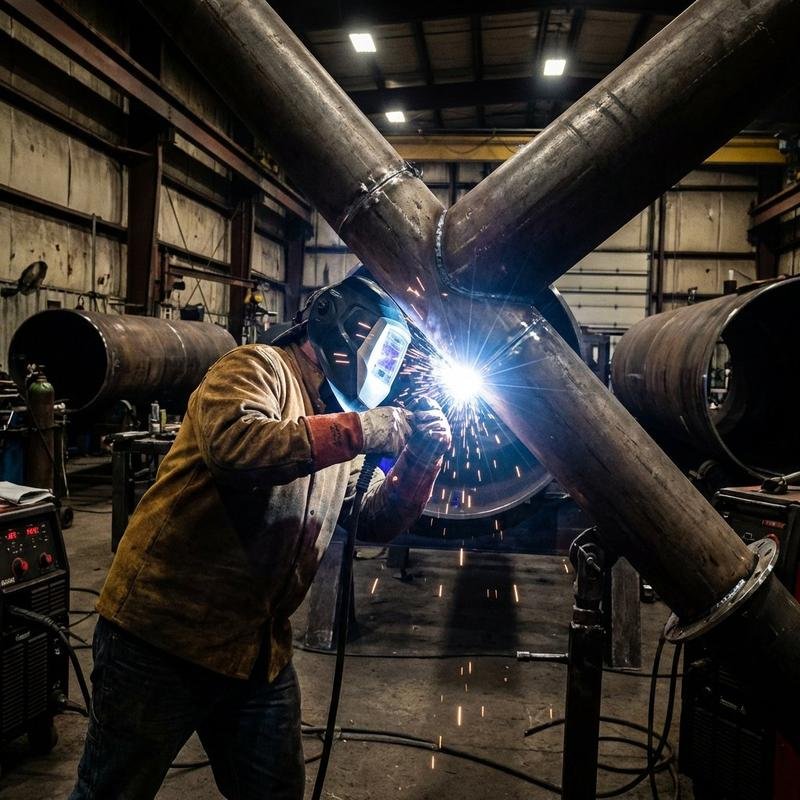

Welder in full leather PPE and welding helmet performing a large diameter pipe weld in an industrial pressure vessel fabrication shop, bright welding arc visible with sparks, large steel pipes and fabrication equipment visible in background
ASME Section IX pipe qualification — pressure vessel and piping fabrication environment. The welder performs the test coupon at their facility under a qualified WPS. WeldCertTest provides CWI inspection and accredited bend testing. Official WPQ issued on ASME Form QW-484.

Who Needs ASME Section IX Qualification

Section IX qualification is required any time a construction code that adopts ASME Section IX is specified. The most common applications:

ASME Construction Codes That Require Section IX Welder Qualification
Code / Standard Application Typical Industry
ASME Section VIII Div. 1 & 2Pressure vessels, heat exchangers, separatorsOil & gas, chemical, petrochemical
ASME Section IPower boilersPower generation, utilities
ASME B31.1Power pipingPower plants, steam systems
ASME B31.3Process pipingRefineries, chemical plants, industrial
ASME B31.4 / B31.8Liquid/gas transmission pipelinesPipeline contractors
NBIC (NB-23)Pressure vessel repair and alterationR-stamp repair shops

Test Positions — Plate and Pipe

ASME Section IX uses the same position designations as AWS (1G, 2G, 3G, 4G for plate; 1G, 2G, 5G, 6G for pipe) but with different coverage rules. Plate positions cover flat, horizontal, vertical, and overhead on plate and on pipe over 24 inch OD. Pipe positions follow Table QW-461.9 for both plate and pipe coverage.

Important distinction from AWS D1.1: Under ASME Section IX, plate qualifications do not qualify for pipe 24 inch OD and under — the welder must test on pipe to qualify for production pipe work in that diameter range. This is one of the most commonly misunderstood differences between the two codes.

ASME Section IX Position Coverage — QW-461.9 Summary
Test Position Type Groove Positions Qualified (Plate / Pipe >24" OD) Pipe ≤24" OD Groove
1GPlateFlatFlat
2GPlateFlat, HorizontalFlat, Horizontal
3GPlateFlat, Vertical—
4GPlateFlat, Overhead—
3G & 4GPlateFlat, Vertical, Overhead—
2G, 3G & 4GPlateAll positionsFlat, Horizontal
1GPipeFlatFlat
2GPipeFlat, HorizontalFlat, Horizontal
5GPipeFlat, Vertical, OverheadAll
6GPipeAll positionsAll positions
2G & 5GPipeAll positionsAll positions

Essential Variables — When Requalification Is Required

Under ASME Section IX QW-350, a change in any essential variable requires the welder to requalify. These are not minor administrative updates — each represents a meaningful change in the weld being produced. The most common essential variable changes that trigger requalification:

Change in Process
SMAW → FCAW, GTAW → GMAW, etc.
Backing Change
Adding or removing backing per QW-402.4
Pipe Diameter
Below qualified minimum per QW-452.3
P-Number Change
Base metal group change (with exceptions)
F-Number Change
Filler metal category change per QW-432
GMAW Transfer Mode
Short-circuit ↔ spray/globular transfer
Position
Welding beyond qualified range per QW-461.9
Gas Backing (GTAW)
Addition or deletion of inert gas backing

ASME Section IX vs. AWS D1.1 — Key Differences

Many fabrication shops qualify welders to both codes depending on the project. Understanding the structural differences between the two systems prevents compliance gaps.

ASME Section IX

  • Pressure vessels, boilers, process piping
  • P-Numbers classify base metals
  • Plate qualifies pipe over 24" OD only
  • 6G or 2G+5G = all positions all pipe
  • Form QW-484 WPQ documentation
  • 6-month continuity rule (QW-322.1)
  • Renewal = any position, any material
  • ASME authorized inspector oversight

AWS D1.1

  • Structural steel — buildings, bridges
  • Base metal grouped by strength
  • Plate qualifies broader pipe range
  • 3G+4G = all positions plate and pipe
  • WPQ per D1.1 Clause 4.9 documentation
  • 6-month continuity rule (Clause 4.25)
  • Renewal = same position and process
  • CWI oversight per D1.1 requirements

Qualification Thickness Range — QW-452

The thickness of the test coupon determines the range of production weld thicknesses the welder is qualified to weld. ASME Section IX Table QW-452.1(b) governs this for groove welds:

Qualification Thickness Range — QW-452.1(b) Groove Welds
Test Coupon Thickness (t) Qualified Production Thickness Notes
Less than 3/16"t to 2tThin gauge — limited range
3/16" to less than 3/4"3/16" to 2tStandard limited range
3/4" or greater (3+ layers)3/16" to unlimitedUnlimited thickness qualification

For unlimited thickness qualification, weld a coupon 3/4 inch or thicker with a minimum of three weld layers. This is the standard approach for shop qualification programs — weld once, qualify for all production thicknesses.

Continuity and WPQ Maintenance

Per QW-322.1, an ASME Section IX welder qualification expires if the welder does not use the qualified process for a period of six months or more. The employer is responsible for documenting continuity. A qualification that expires due to a continuity lapse is not automatically restored — the welder must renew.

Renewal Under QW-322.2 Is Easier Than Initial Qualification: A welder whose qualification has merely expired (not disqualified for cause) can restore all previous qualifications for a process by welding a single test coupon — any position, any material, any thickness. A successful test restores everything previously qualified for that process. This is significantly more forgiving than D1.1 renewal, which requires testing in the same position.
  • Start continuity log same day WPQ is received
  • Document every qualifying production weld — date, process, job number, supervisor
  • Track each process independently — SMAW and GTAW continuity are separate
  • Set 5-month calendar reminders for each welder per process
  • Review all welder logs quarterly — catch gaps before they become lapses
  • Renewal coupon does not have to match original qualification configuration

The Mail-In Qualification Process for ASME Section IX

The process is identical to our D1.1 qualification service. Call before your welder runs any coupon — confirm the WPS, coupon configuration, and testing method. We provide the shipping address and Test Request Form after quote acceptance.

  1. Call first — confirm WPS, coupon specs, P-Number, F-Number, position, and testing method before welding
  2. Weld the test coupon at your facility under the qualified WPS
  3. Prep and document — cool to ambient, mark plate, complete Test Request Form, include WPS copy
  4. Ship to Atlanta using the address provided after quote acceptance
  5. CWI visual inspection per QW-194 — every coupon before mechanical testing
  6. Bend testing — accredited guided bend specimens per QW-302, WPQ issued on passing

See the full process page and shipping instructions for complete details. Timeframes are the same as D1.1 work — 4 to 10 business days from receipt to WPQ delivery.

Also Qualified for These Codes: In addition to ASME Section IX, WeldCertTest handles welder qualification testing under AWS D1.3 (sheet metal), AWS D1.6 (stainless steel structural), AWS D1.7 (strengthening and repair), AWWA (water works), and API (pipeline). If your project specifies a code not listed here, call — your contact can confirm coverage before you ship.

Frequently Asked Questions — ASME Section IX

Does ASME Section IX allow mail-in welder qualification testing?
Yes. ASME Section IX does not require the examiner to witness the welding. The code requires that the test coupon be welded in accordance with a qualified WPS and that results be evaluated per QW-302. The welder performs the coupon at their facility and ships it for CWI inspection and accredited bend testing. WeldCertTest issues the official WPQ documentation on Form QW-484.
What is the difference between ASME Section IX and AWS D1.1 welder qualification?
ASME Section IX governs welder qualification for pressure vessels, boilers, and process piping — applications where ASME construction codes are specified. AWS D1.1 governs structural steel welding. The test positions are similar but coverage rules differ significantly. ASME uses P-Numbers to classify base metals, QW-461.9 for position coverage, and QW-452 for thickness ranges. A D1.1 qualification does not satisfy ASME Section IX requirements and vice versa.
What positions does a 6G pipe test qualify under ASME Section IX?
Under Table QW-461.9, a 6G qualification qualifies all positions — flat, horizontal, vertical, and overhead — on both plate and pipe. For pipe, the diameter qualified ranges from 2-7/8 inch OD to unlimited when tested on pipe 2-7/8 inch OD or larger. The 6G is the broadest single qualification available under Section IX for pipe welding.
Does plate qualification qualify for pipe under ASME Section IX?
Only for pipe over 24 inch OD. Per Table QW-461.9, a plate qualification covers pipe over 24 inch OD in the same groove positions as the plate test. For pipe 24 inch OD and under, the welder must test on pipe. This is one of the most significant differences from AWS D1.1 and a common compliance error in shops transitioning between codes.
How long is an ASME Section IX qualification valid?
Per QW-322.1, an ASME Section IX qualification remains valid as long as the welder uses the qualified process at least once every six months and the employer documents it. If more than six months pass without documented use, the qualification expires. Renewal per QW-322.2 requires a single test coupon in any position — a successful test restores all previously qualified positions and variables for that process.
What are essential variables under ASME Section IX?
Essential variables under QW-350 are changes that require the welder to requalify. The most common include: change in welding process, addition or deletion of backing, pipe diameter below qualified range, base metal P-Number change (with exceptions), filler metal F-Number change, change in GMAW transfer mode between short-circuit and spray/globular, and welding in a position beyond what QW-461.9 allows for the test position used.
What is a P-Number in ASME Section IX?
P-Numbers are ASME's system for grouping base metals with similar weldability. P-Number 1 covers carbon steel — the most common material in pressure vessel and piping fabrication. When a welder qualifies on P-1 material, they are generally qualified to weld other P-1 materials. Most shop carbon steel work falls under P-1. Qualifying on certain P-Numbers extends to others per QW-423 — call to confirm your specific material situation before testing.
What documentation is produced by ASME Section IX qualification testing?
WeldCertTest produces the Welder Performance Qualification record on ASME Form QW-484 or equivalent. The record documents: welder identification, welding process, WPS followed, base metal P-Number, filler metal F-Number, test position, pipe OD if applicable, backing type, test results (visual and bend specimens), examiner signature, and qualification ranges. The employer maintains the WPQ and continuity log.
Can WeldCertTest handle other codes besides ASME Section IX and AWS D1.1?
Yes. In addition to ASME Section IX and AWS D1.1, WeldCertTest handles qualification testing under AWS D1.3 (structural sheet metal), AWS D1.6 (stainless steel), AWS D1.7 (strengthening and repair of existing structures), AWWA (water works), and API (pipeline welding). Call to confirm your specific code requirement before shipping.
How does ASME Section IX renewal qualification work?
Per QW-322.2, if a welder's qualification has expired due to a continuity lapse (not disqualified for cause), renewal requires a single test coupon in any position, any material, any thickness, using the qualified process. A successful test restores all previously qualified positions, thicknesses, diameters, and variables for that process. The renewal coupon does not need to match the original configuration — this is significantly more flexible than D1.1 renewal requirements.
